P500

P500 Tractor Overview

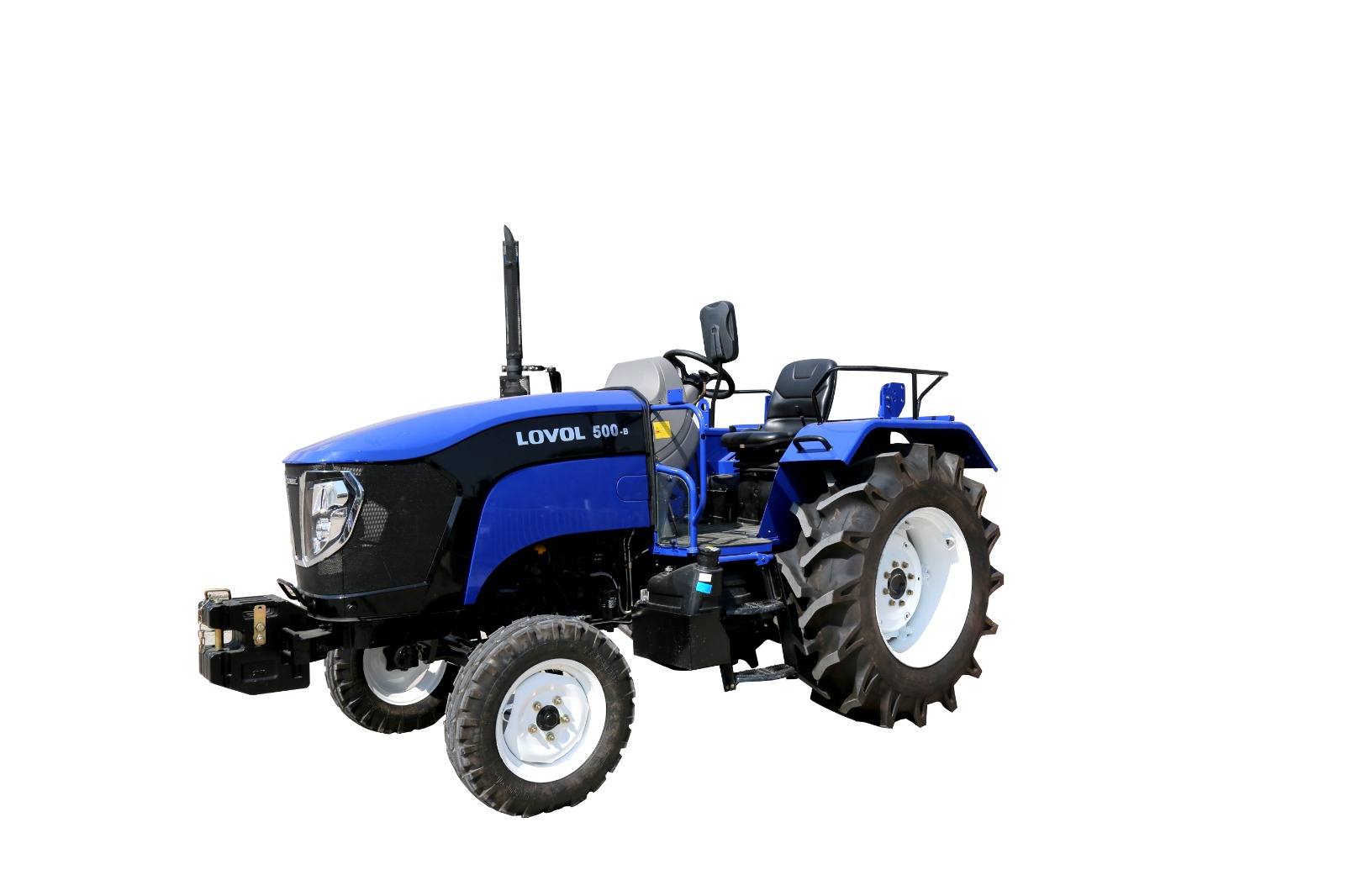

P500 Tractor

🚜 P500 Tractor

🧩 Component Structure

🔧 Engine System
Engine ModelA498BT
Emission StandardStage II
Cylinders4
Rated Power36.8 / 50 kw/HP
Rotating Speed2400 n/min
Max Torque180 Nm
Displacement3168 cc
Air IntakeExternal Wet Type
Fuel Tank60 L
⚙️ Transmission System
Drive Type2WD
Clutch11 inch, dry, single/dual action
Gear ShiftSynchronizer
Gears12 Forward + 12 Reverse
Final DrivePlanetary Gear
Differential LockMechanical
BrakeOIB (Oil-immersed brake)
Parking BrakeIndependent hand brake
🔁 PTO System
PTO Type540 / 1000
PTO Gears6 Splines
📏 Dimensions
Overall Dimensions3986 × 1670 × 2807 mm
Wheelbase1966 mm
Front Track
Rear Track
Ground Clearance
💧 Hydraulic System
Output Flow32 L/min
Hydraulic ValveN/A
Lifting Capacity≥9.1 kN
🛞 Tires
Front Tires6.5 - 16
Rear Tires14.9 - 28
🔄 Steering
Steering Radius (brake)
Steering Radius (no brake)
⚖️ Weight
Structure Weight

🚜 Special Features – P500 (2WD) Tractor

  • ✔️
    Powerful & Efficient Engine: Equipped with a four-cylinder engine featuring speed stability control technology and a high-efficiency combustion patent, providing strong power, full combustion, and reduced fuel consumption.
  • ✔️
    Advanced Gearbox System: Compact new-type gearbox minimizes power transmission loss and comes with 12 forward and 12 reverse synchronizer gears for smooth, light operation and excellent control.
  • ✔️
    Comfortable & User-Friendly Operation: Includes a suspension pedal, side-mounted control handle, optimized ergonomic layout, and a luxury wide seat to ensure a comfortable and easy driving experience.
  • ✔️
    Durable Rear Axle System: Features a planetary reduction gear, differential mechanism, and wet brake, offering high durability, stability, and reliability with minimal maintenance under normal conditions.
  • ✔️
    Smooth Handling & Safety: Easy to operate with low operational force, providing stable control and safety during use.
  • ✔️
    Multi-Terrain Adaptability: Comes with paddy tires, making it suitable for paddy fields, dry lands, and other multifunctional agricultural tasks.
